Bluetooth Oscilloscope & Amp; Logic Analyzer Module
৳ 3450 ৳ 3250
Product Code: pkb2747
Dial to order by phone
01768111986
| Inside Dhaka | ৳ 60 |
| Outside Dhaka | ৳ 150 |
| Pickup From Store | ৳ 0 |
01611526238
| China Product | |
| Cash on Delivery | |
| Delivery within: 2-3 business days |
Bluetooth Oscilloscope & Logic Analyzer Module
speed channels with a maximum sampling rate of 100KHz, 3 common ADC sampling channels with a maximum sampling rate of 10KHz, and 8 common ADC channels with a maximum sampling rate of 10Khz, and these 8 channels can also be digital
waveform input channel, the time accuracy can be accurate to 1us. Also contains a signal output channel, which can output sine wave, triangle wave, and custom waveform. Two ground connection ports, a total of 13 signal sampling ports, 1 signal output port,
2 ground connection ports. Rich software functions to support pulse width and amplitude measurement of every channel, waveform count, and rising edge trigger, falling edge trigger, level trigger, single work, continuous work, etc. The software will continue to update and continue to support various digital analysis.
Specification:
Input voltage range: 0-15V,
Signal output voltage range: 0-3.3V
High speed 100Khz sampling channel: 2
Normal 10Khz sampling channel: 11
Convertible to digital sampling channels: 8
Digital waveform sampling time accuracy:1us
Built-in lithium battery capacity: 1500maH
Support android version: 6.0 and above
Size: about 10*6*2.5cm/3.94*2.36*0.98in

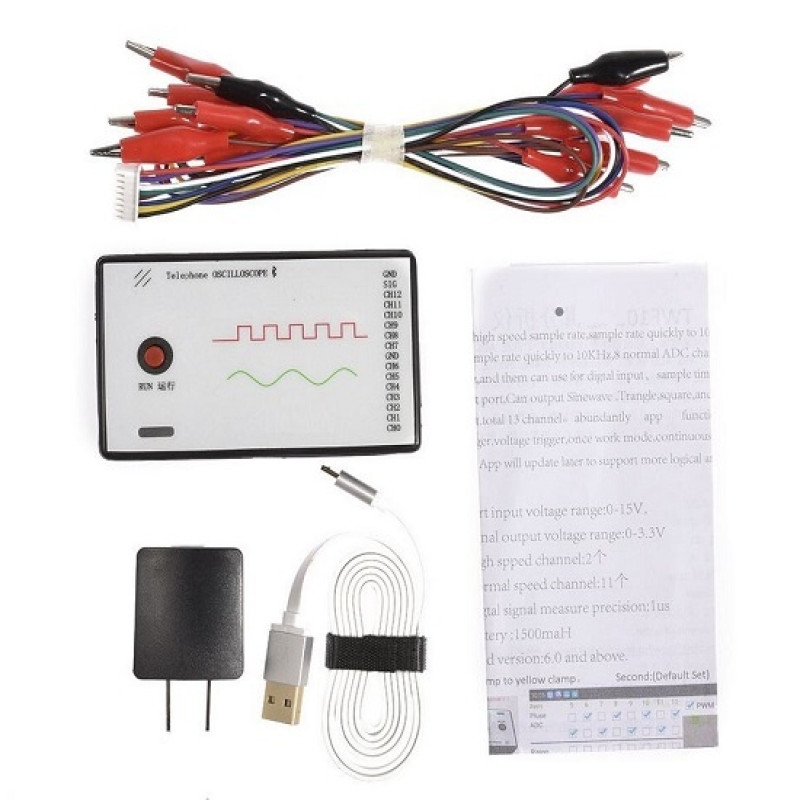

Product List:
1 x Host
1 x Power cord
1 x Crocodile clip wire
