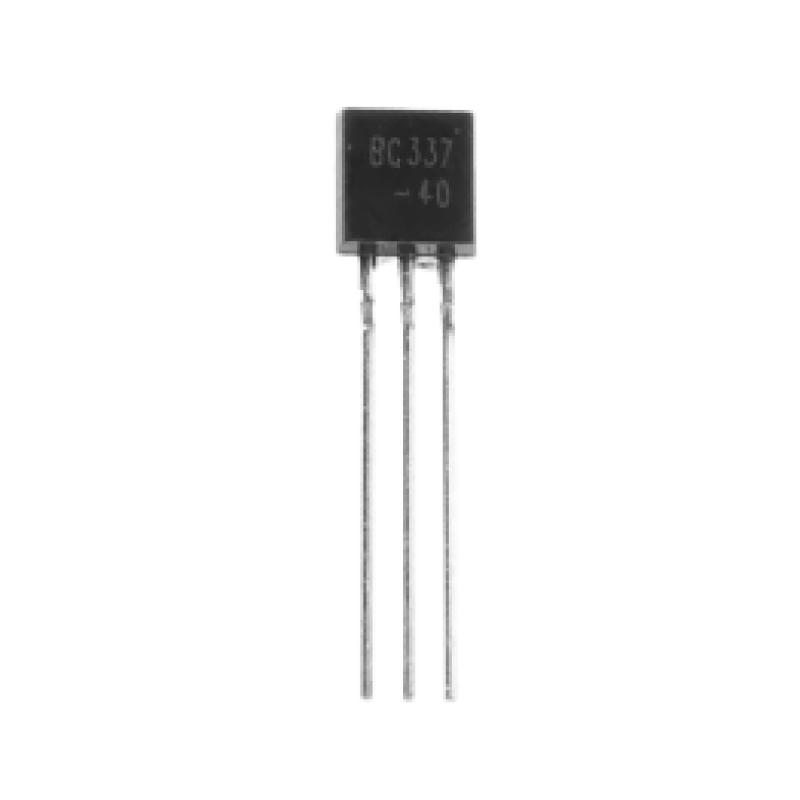

BC337 45V 0.8A NPN General Purpose Transistor
৳ 4 ৳ 3
Product Code: pkb866
Dial to order by phone
01768111986
| Inside Dhaka | ৳ 60 |
| Outside Dhaka | ৳ 150 |
| Pickup From Store | ৳ 0 |
01611526238
| China Product | |
| Cash on Delivery | |
| Delivery within: 2-3 business days |
The BC337 is a NPN Transistor commonly used in low power amplifier circuits. The Transistor can provide a maximum gain (hfe) of 630. The BC337 has three part names, the gain value of BC337-16 is 100 to 250, for BC337-25 it is 160 to 400 and for BC337-40 it is 250 to 630. Apart from the gain value other parameters are similar for all the three part numbers. The transistor also has a high collector current of up to 800mA and a decent collector emitter voltage of 45V and the base trigger voltage is only 5V.
